A GUIDE TO KITCHEN HARDWARE · FOR YOUR HOME
The parts you never see are the ones you touch every day.

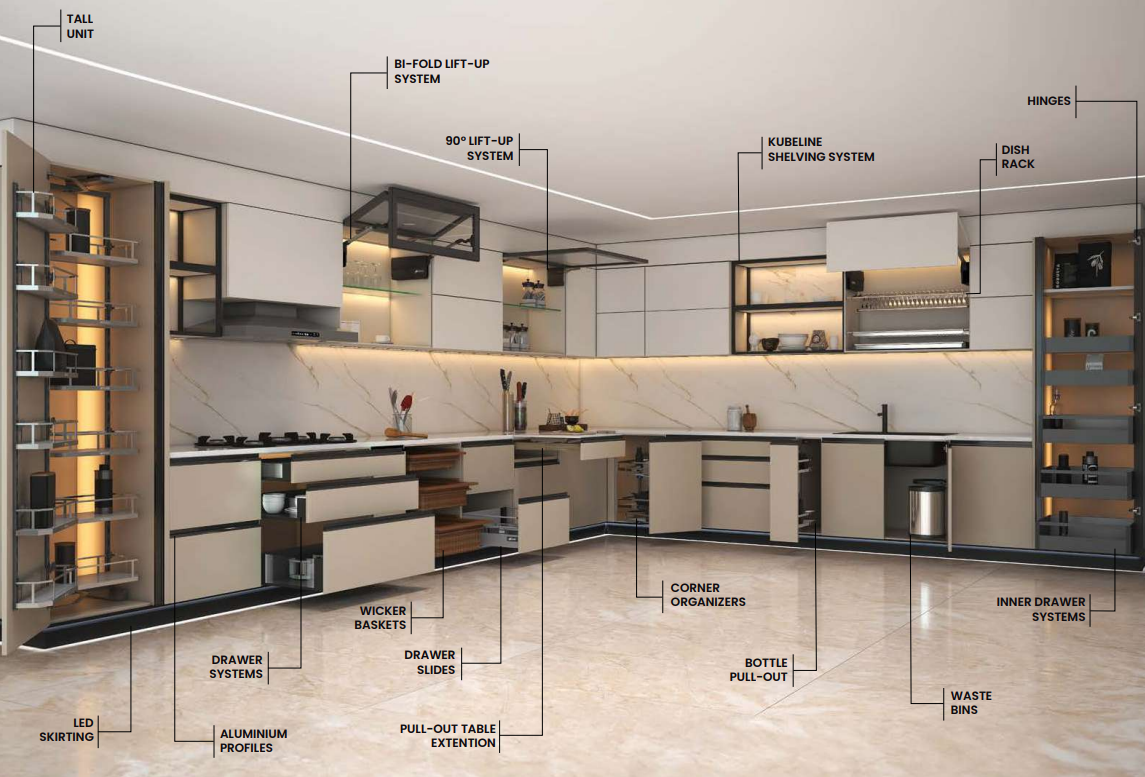

Hinges, runners, corners, lifts — the quiet engineering hidden inside your cabinets. Scroll through each one, see how much space it needs, and learn where it's worth spending.
01 / 08 · DOORS

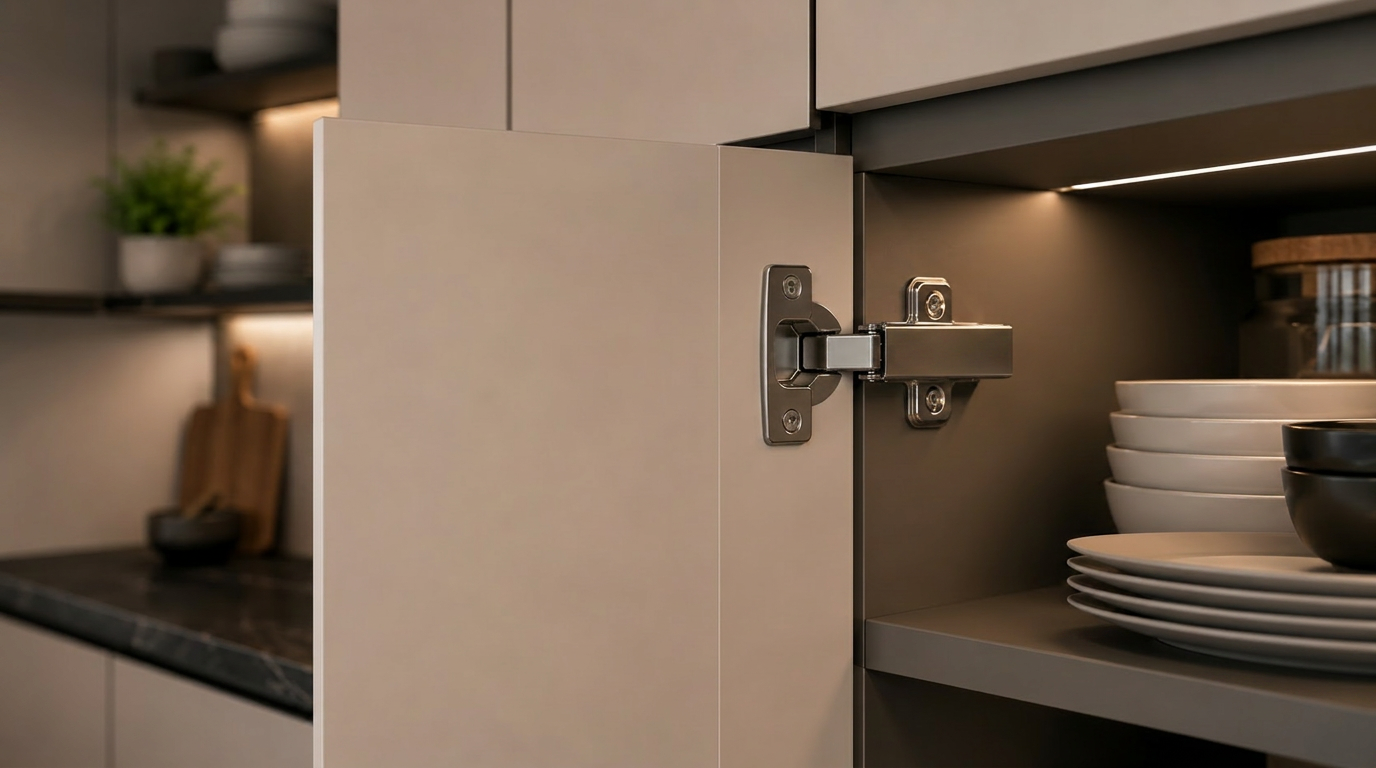

Soft-close hinges
The concealed hinges every cabinet door swings on.
These are the hinges tucked inside the door, out of sight. Soft-close means a small damper catches the door in the last few centimetres, so it never slams — it eases itself shut. The same hinge adjusts in three directions, so faces stay lined up for years.
Where it lives
Every hinged door — base units, wall units, tall units.
- +No banging, no pinched fingers
- +Doors stay aligned over time
- +Completely hidden from view
- –Costs more than a plain hinge
- –Very cheap dampers fade over years
- Space
- fits inside the door · 35mm cup bore · no extra cabinet space
- Opening
- 95° standard · up to 165° for corner doors
02 / 08 · DRAWERS

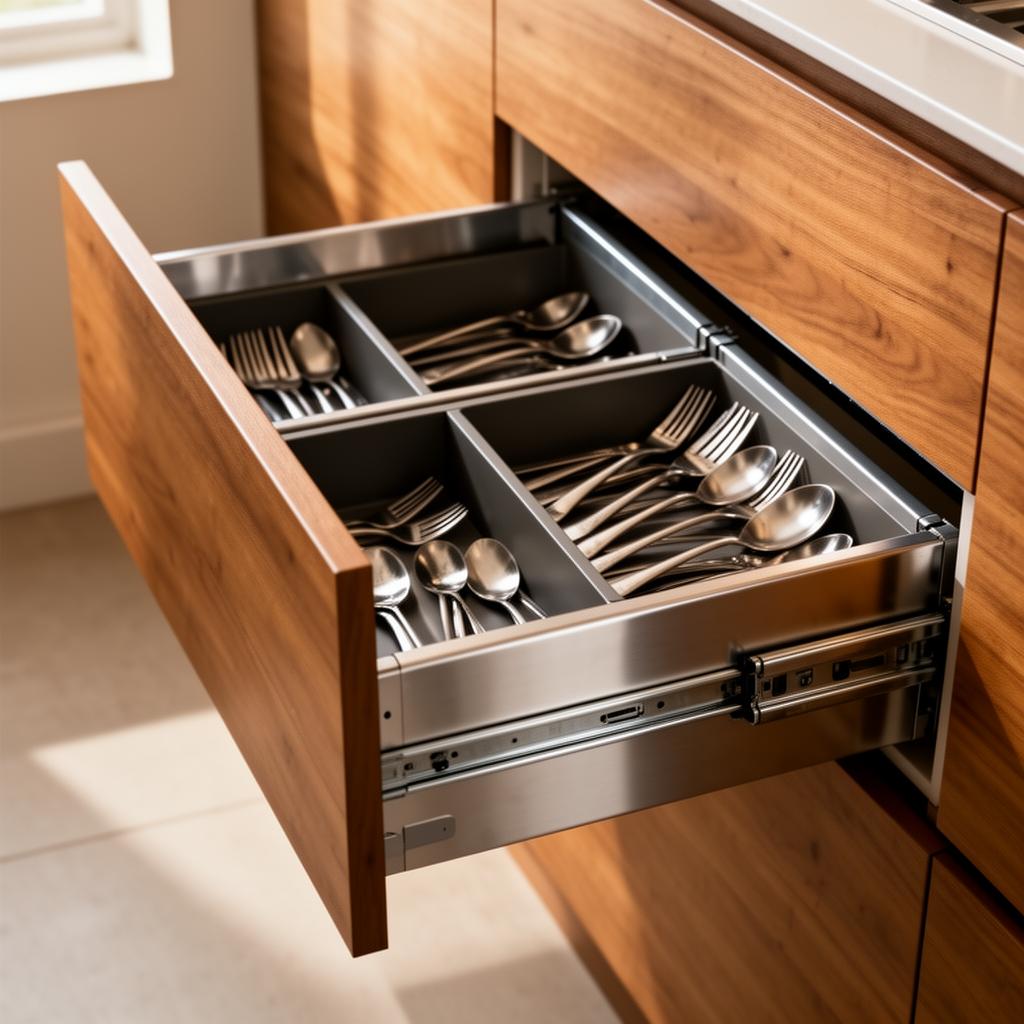

Drawer runners & box systems
What the drawer rides on — the single thing you'll feel most.
Two families. Telescopic runners are metal rails under or beside a drawer. Box systems are drawers with steel sides where the runner is built in — heavier-duty and the most solid to use. Both can be soft-close and full-extension, so the drawer pulls all the way out and you reach the very back.
Where it lives
Every drawer — base units, internal drawers, tall-unit drawers.
- +Reach the very back, every time
- +Box systems feel solid and last
- +Soft-close stops the slam
- –Box systems cost more
- –Cheap runners sag under weight
- Space
- runner length ≈ cabinet depth (450–550mm typical)
- Load
- good systems carry 30–50kg+ per drawer
03 / 08 · CORNERS

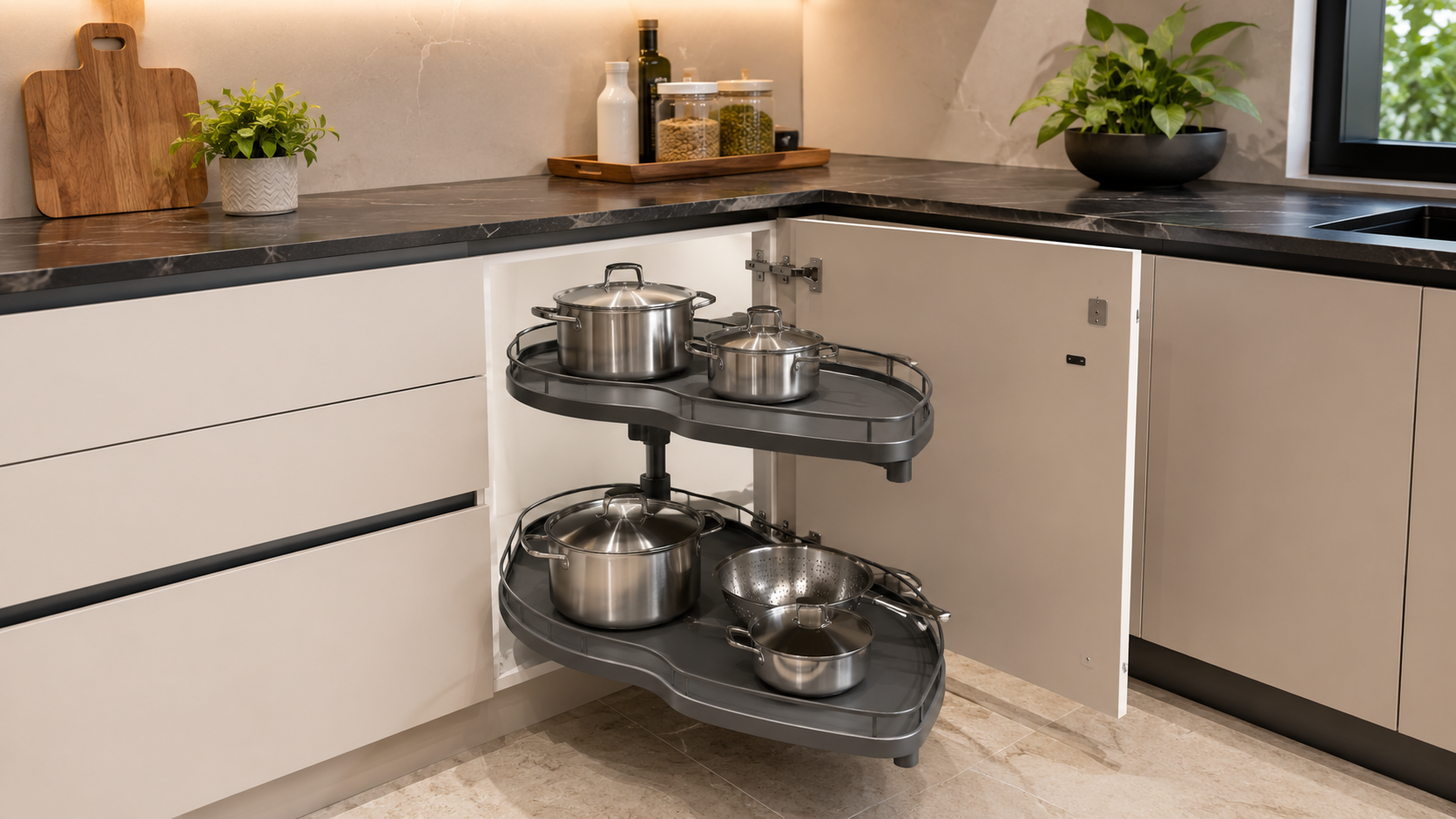

Corner solutions
Magic corners & carousels — rescuing the dead space.
An L-shaped kitchen always has an awkward corner you can't reach. A magic corner fixes it: pull the front baskets out and the rear baskets glide forward to meet you. A carousel does the same by spinning shelves around. Storage that used to be unreachable comes straight to your hand.
Where it lives
The inside corner where two cabinet runs meet.
- +Turns dead space into real storage
- +Everything comes to you
- –One of the priciest fittings
- –Needs a minimum cabinet size
- –Heavy — quality build matters
- Space
- magic corner needs ≈900–1000mm corner cabinet
- Door
- ≥450mm opening for the mechanism to swing
04 / 08 · STORAGE

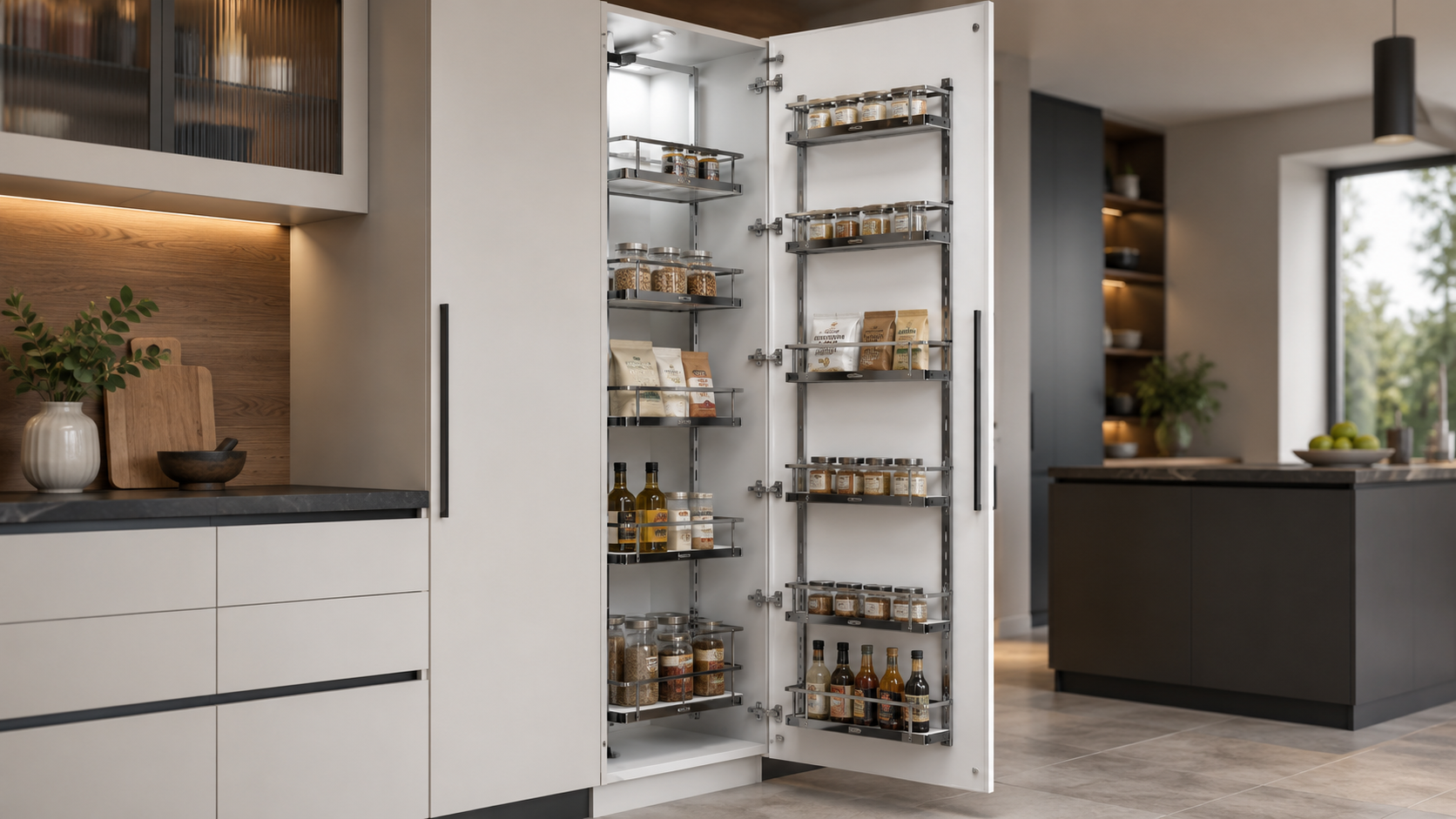

Tall unit / pantry pull-out
A full-height larder that comes out to meet you.
A tall rack of shelves and baskets that slides straight out of a full-height cabinet. Instead of digging into a deep, dark pantry, you pull once and the whole thing rolls out — visible and reachable from both sides. It holds a remarkable amount for the floor space it uses.
Where it lives
Tall larder units, usually beside the fridge or oven tower.
- +See everything at once
- +Huge capacity in a slim footprint
- +Reachable from both sides
- –Heavy when full — needs strong runners
- –Often the priciest single accessory
- Width
- 300 · 400 · 450 · 600mm common
- Load
- up to ≈60–80kg+ on good systems
05 / 08 · WALL UNITS

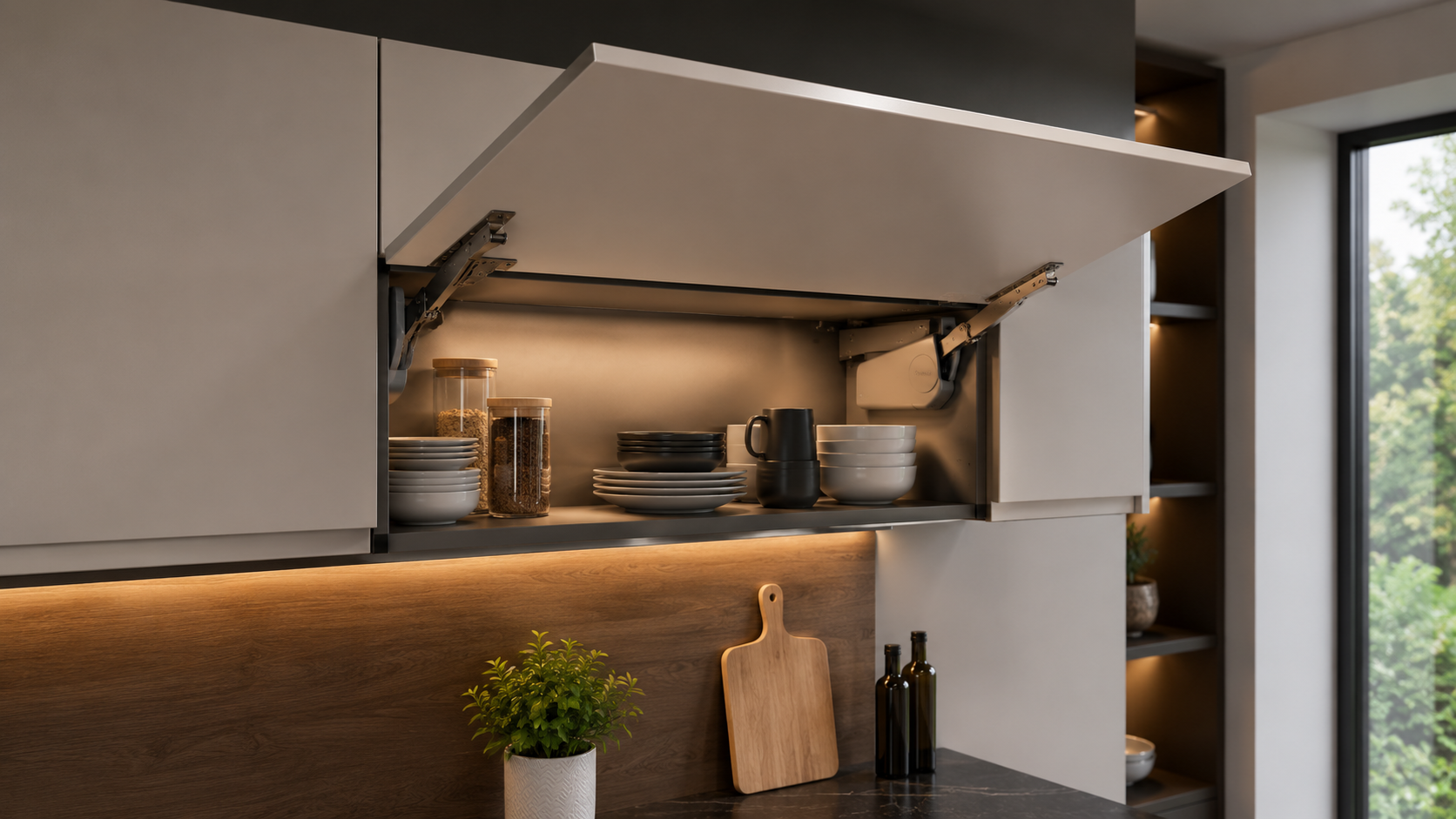

Overhead lift-up systems
Doors that lift up and stay up, instead of swinging at your head.
On a wall cabinet, a swinging door ends up right in your face. A lift-up system raises the front upward instead, and gas struts or a spring hold it there until you press it gently shut. It's the most comfortable way to open the cabinets you reach into most — above the hob or sink.
Where it lives
Wall / overhead cabinets, especially above a worktop.
- +Never bump your head on a door
- +Opens wide, stays put
- +Soft-close on the way down
- –Costs more than a hinge
- –Needs clear space above to lift
- –Must be matched to door weight
- Space
- no sideways clearance · needs room above to rise
06 / 08 · ORGANIZERS

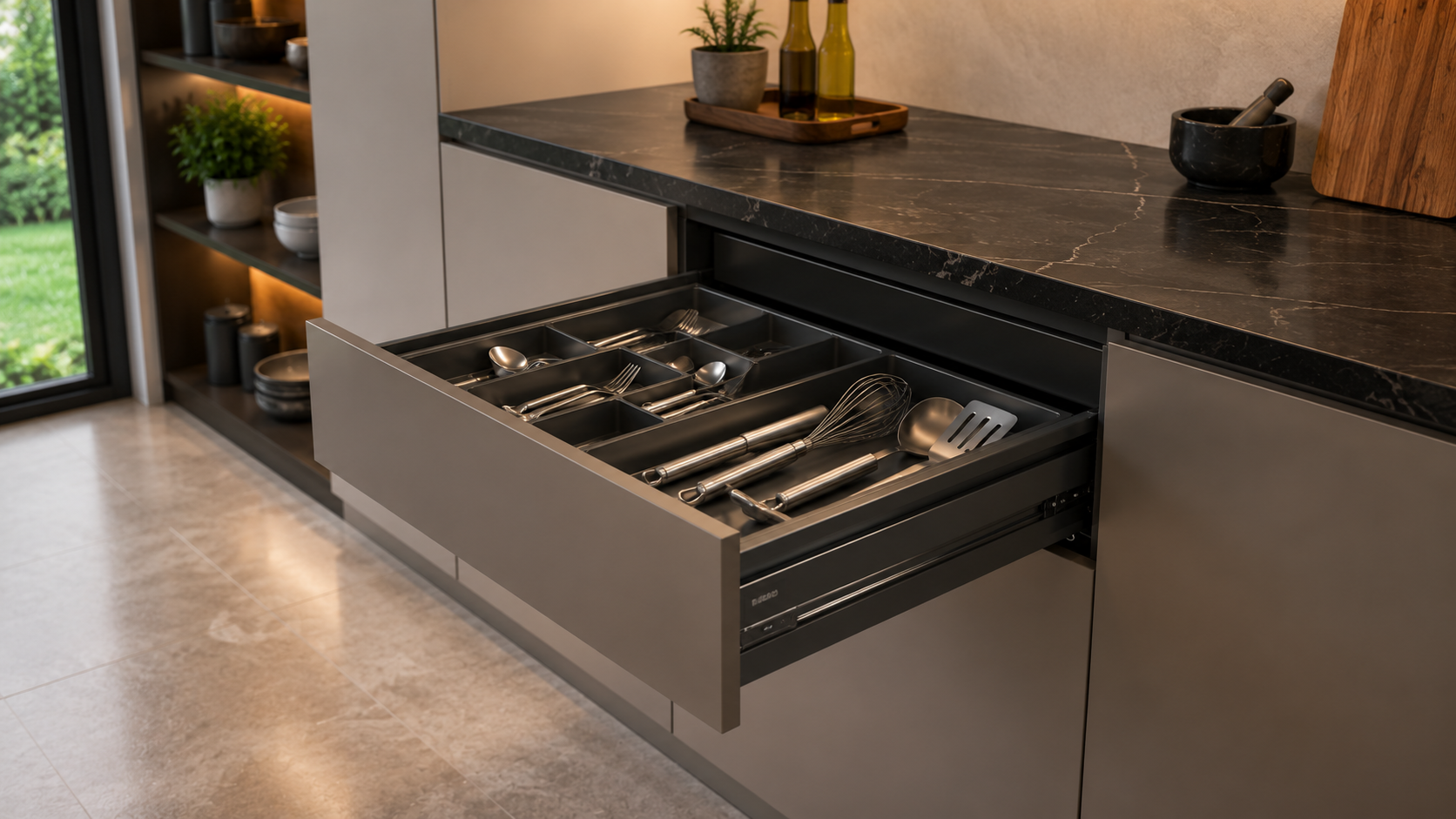

Pull-out baskets & organizers
The trays and baskets that give everything a home.
These are the fittings inside the cabinets — cutlery trays, plate holders, thali baskets, and slim bottle pull-outs — in stainless steel, wire or wood. A bottle pull-out can use a gap as narrow as 150mm, so even leftover slivers of cabinet earn their keep. The big thing to check is the steel: ask for 304-grade stainless so it doesn't rust.
Where it lives
Inside base units and drawers, sized to the cabinet.
- +A place for everything
- +Uses narrow gaps brilliantly
- +Lifts out to clean
- –Cheap wire bends and rusts
- –Fixed sizes — plan up front
- Space
- bottle pull-out from 150mm · baskets sized to drawer
- Look for
- 304-grade stainless steel
07 / 08 · THE LOOK

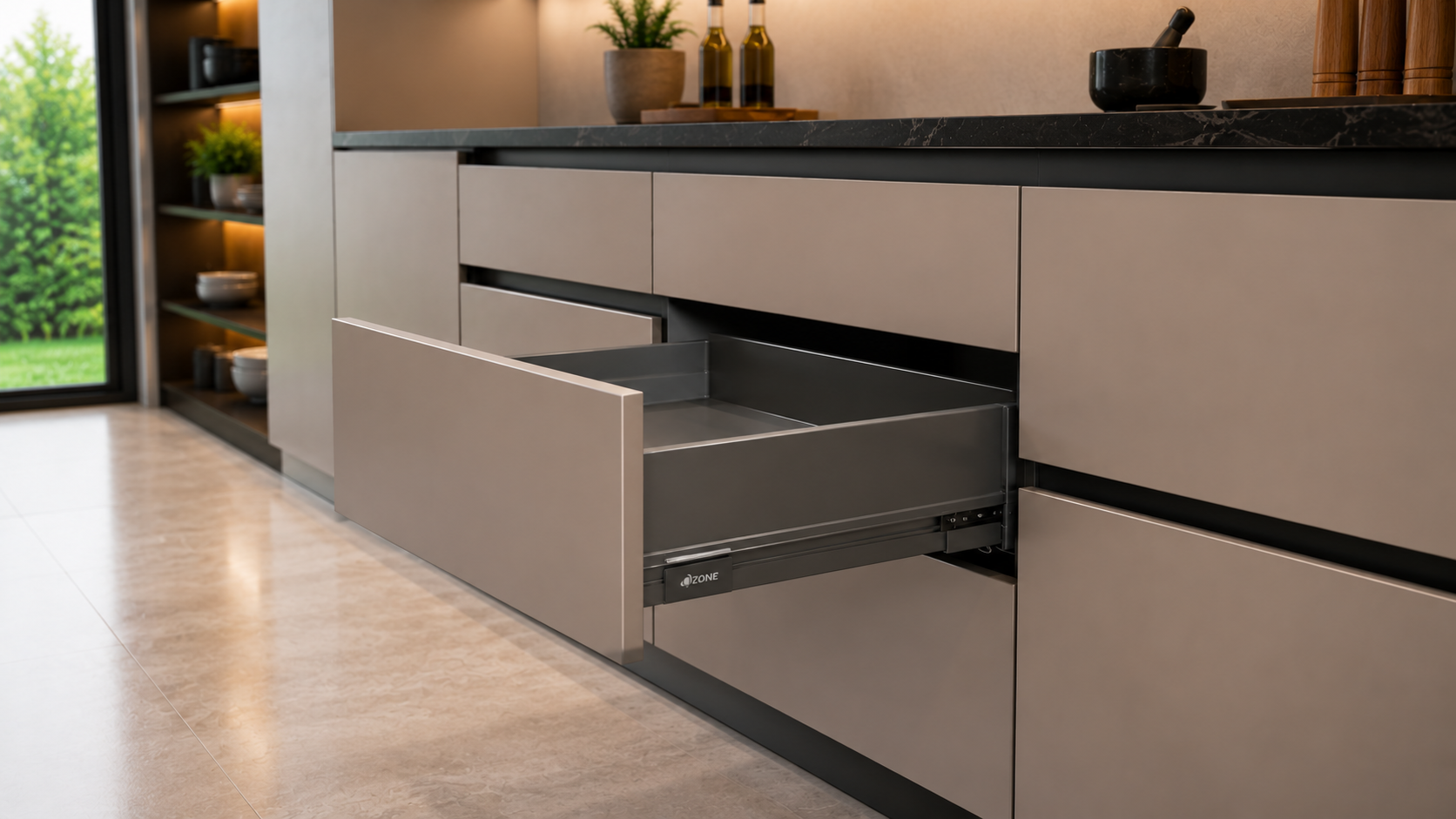

Handleless profiles
How a cabinet opens when there's no handle at all.
A handleless profile uses a slim shadow gap or recessed grip along the top edge of the drawer or door — you hook your fingers in and pull. It gives that clean, seamless face that defines a modern kitchen. Beyond looks, it removes the clearance a swinging handle needs — a real win in a narrow galley — and there's nothing protruding to catch on as you walk past.
Where it lives
Anywhere you want a minimal face — popular across tall and base runs.
- +Seamless, modern, handle-free
- +Nothing to bump into
- +Easy to wipe clean
- –Profile adds a little to cost
- –Recess can collect crumbs
- –Less grip than a chunky handle
- Space
- removes handle clearance — ideal for tight layouts
08 / 08 · UTILITY

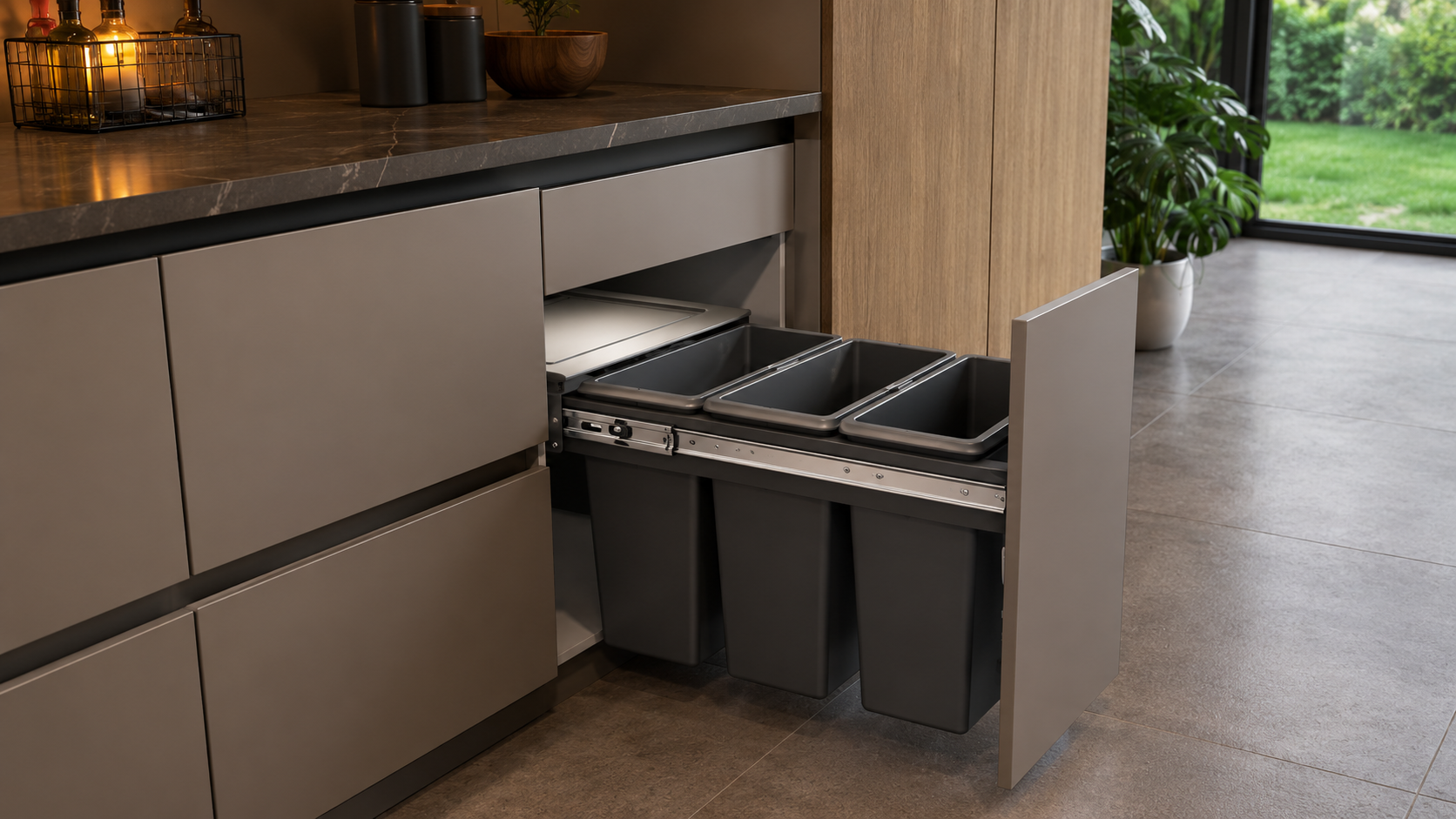

Waste bin pull-outs
The bin that hides behind a door and comes out when you need it.
One or two bins fixed behind a cabinet door, so they glide out the moment you open it and tuck away when you close it. A twin bin lets you separate wet and dry waste, and because it's tied to the door there's no lid to lift or pedal to press — just open and drop.
Where it lives
Almost always the cabinet right next to the sink.
- +Bin out of sight, off the floor
- +Opens with the door
- +Easy waste segregation
- –Uses a whole cabinet
- –Cheap frames wobble
- –Needs occasional cleaning
- Space
- typically a 300–600mm cabinet, depending on bin size
WHERE TO SPEND
Cabinets are furniture. Hardware is the part that has to work.
Spend here first — What you touch daily.
Soft-close hinges and full-extension runners. You use these every single day for years; good quality pays back most here.
Worth it for convenience — The big mechanisms.
Corner units and tall pull-outs carry real weight, so choose a solid brand — huge convenience, but only if it keeps gliding.
For the look & feel — Style choices.
Handleless profiles and lift-up systems shape how the kitchen looks and feels — worth it where you'll notice.
"Your kitchen's hardware works ten times a day for ten years. It's the right place to be a little choosy."
Sizes and loads shown are typical industry figures, rounded for guidance — final specs depend on the brand, model and your kitchen's layout.
